TL-3 (TL-9)
Approximately 3/8" (9.5mm) diameter
Packing :
100 pieces in an egg-caged cardboard box.
10,000 pieces in a carton box.
Carton box :
  • N.W.
  • G.W.
  • MEAS.
  • 18 KGS.
  • 20 KGS.
  • 65CM x 27CM x 29CM
Lamp Number
Volts Amps
±10%		 M.S.C.P.
±25%		 Avg. Life
(Hrs.)		 Filament
Shape		 Miniature
Screw (E10/12)		 Miniature
Screw (E10/13)
1.20
2.25
2.30
2.50
3.80		 0.22
0.25
0.27
0.30
.030		 0.05
0.37
0.35
0.40
0.80		 5
5
10
15
15		 S2
C 2R
C 2R
C 2R
C 2R		 112
222
246
7070D
7072D		 112
222
243
7070D
7072D
Lens-end lamps
Lens-end lamps are used for intensive lighting of small areas. The angle of opening of the light spot is smaller and the light intensity greater, as the filament becomes shorter. For this reason, lens-end lamps normally have a low rated voltage (<6 volt with filament C-6 or C-2R) and a high rated current. The light intensity in the direction of the lamp axis can be more than 5 times as large as for a similar lamp without lens.

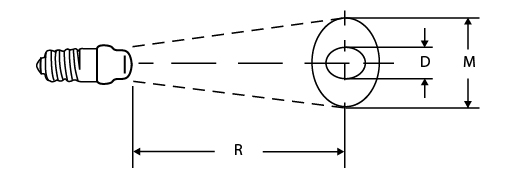

If there are special requirements to the shape of light spot, the following specifications are necessary:

R = distance lens/test surface.
D = minimum diameter of the illuminated circle.
M = maximum extent of the illuminated area.
